Recreational & Entertainment

Created with AutoCAD

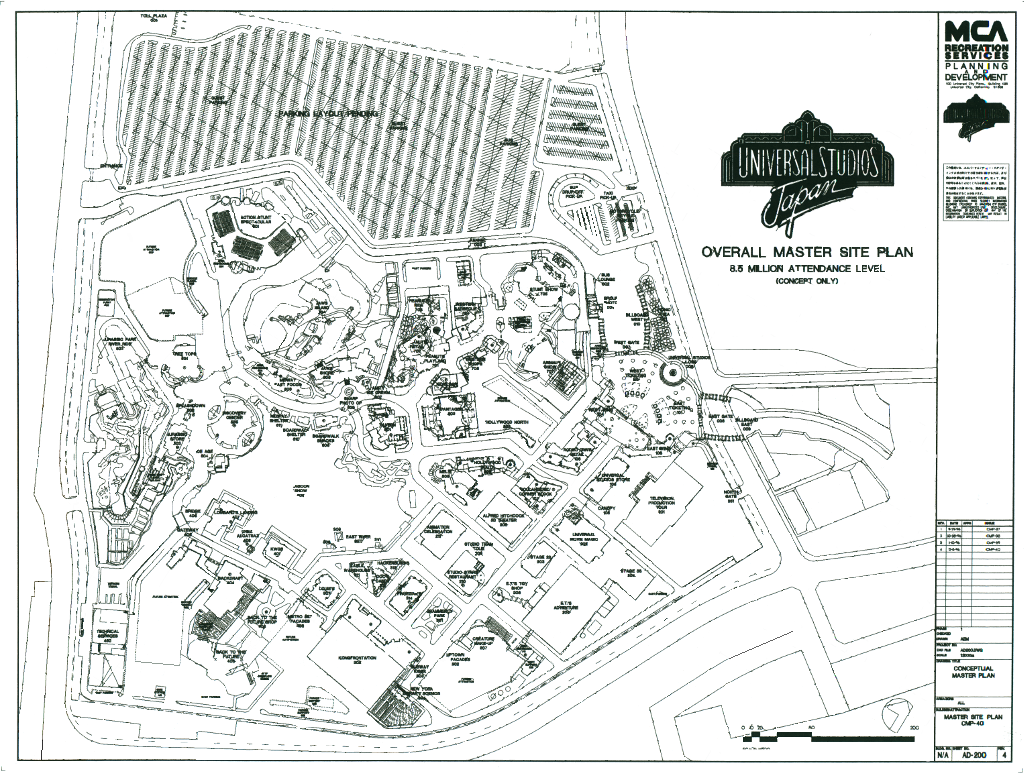

Universal Studios Japan. Master Site Plan

Japan

Master site plans for MCA Universal for the Japan edition of the popular theme park Universal Studios Senior CADD Manager Created conceptual site plans CAD station procurement Developed CAD standards Trained new draftsmen

Master Site Plan
Master Site Plan

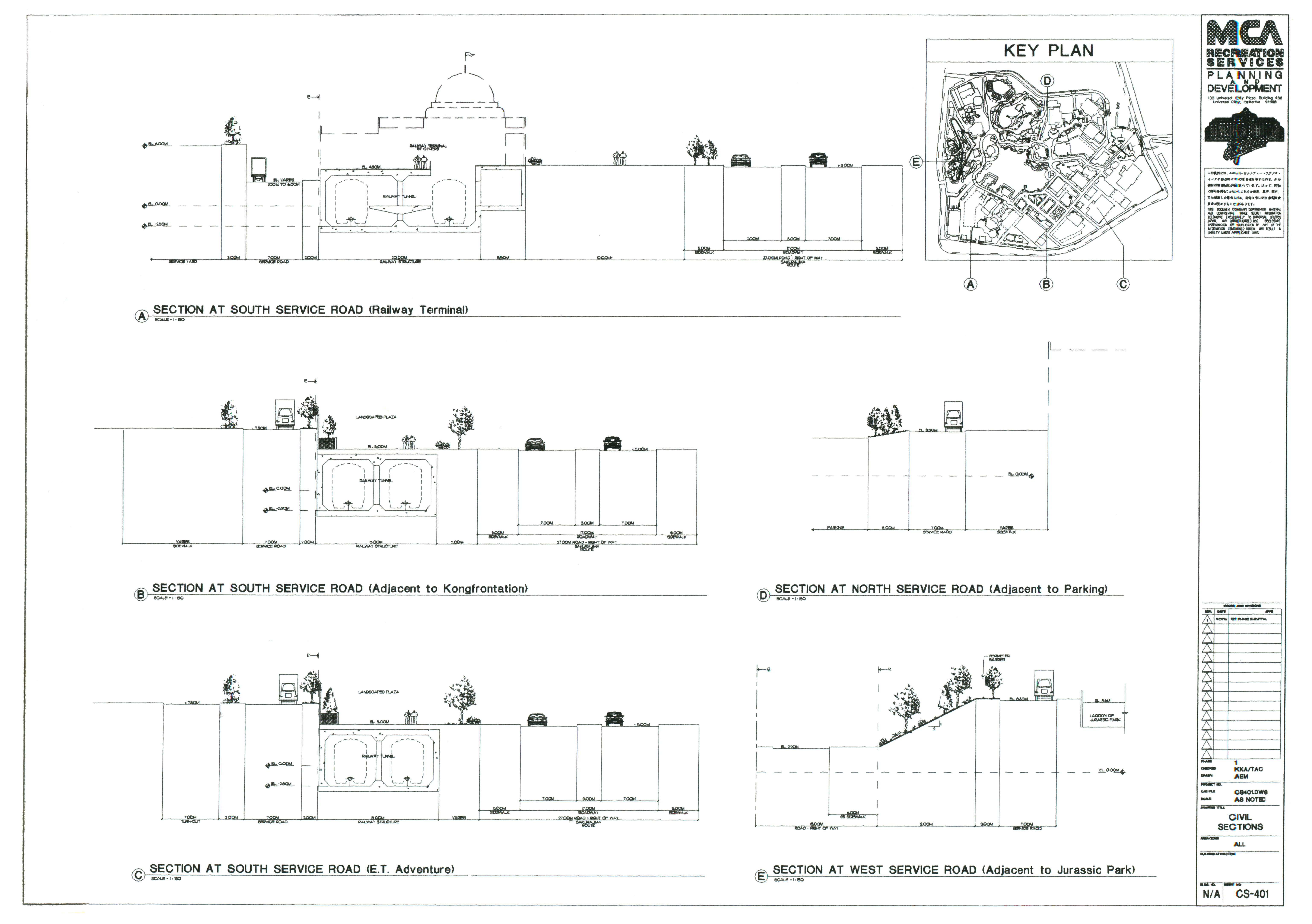

Universal Studios Japan. Civil Sections

Created in AutoCAD

Conceptual Civil Sections Plans for Universal Studios Japan

Civil Sections
Civil Sections
